Chiller

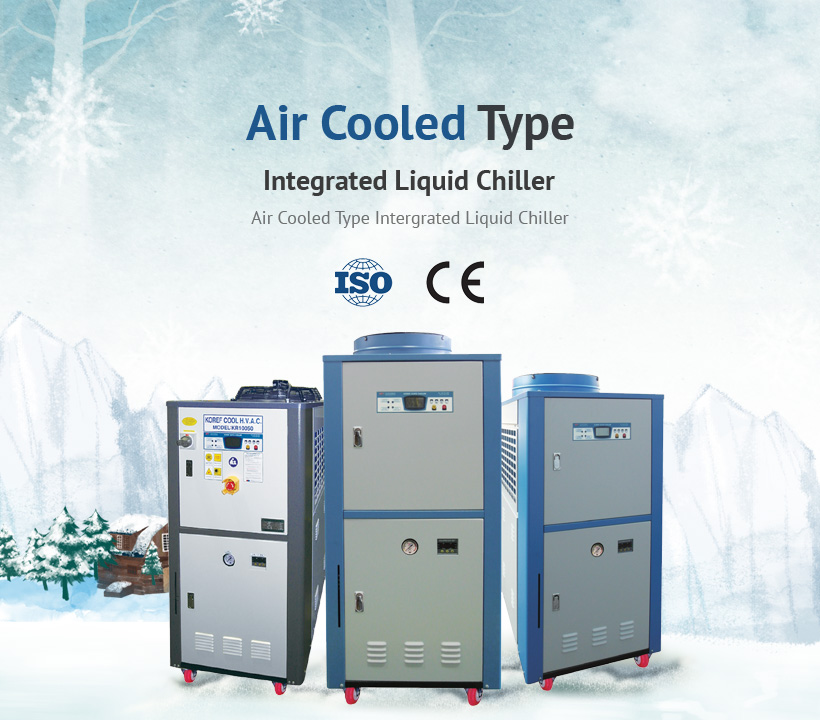

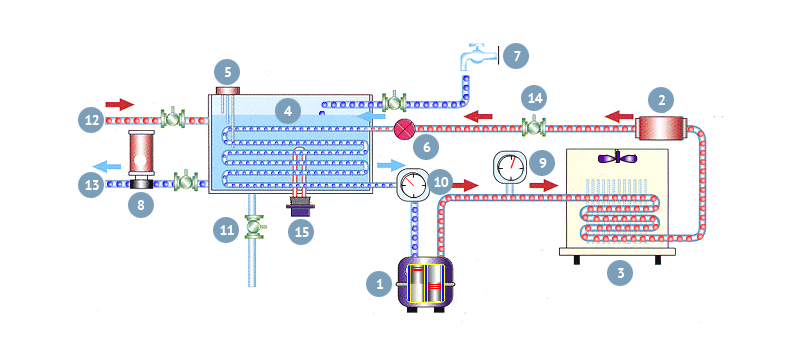

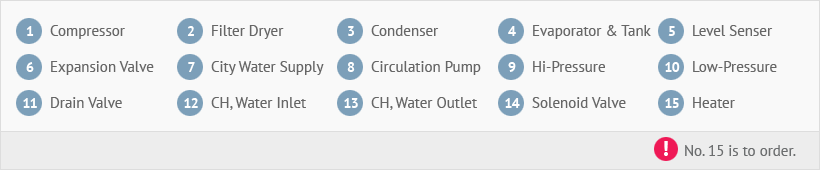

Flow Sheet

Specifications
MODEL KC10 020 KC10 030 KC10 050 KC10 080 KC10 100 KC10 150 KC10 200 KC10 300
Power Supply 380V / 3Ph / 60Hz
Refrigerant R-407C / R-22
Cooling cap kcal/hr 5,000 8,000

14,000

 19,000 30,000 38,000 46,000 60,000
kW 5.8 9.3 16.2 22.0 34.8 44.1 53.4 69.7
Comp. Type Hermetic (Scroll)
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
Circ.Pump Type Multistage Centrifugal Pump
Motor (kW x p) 0.55 0.55 0.75 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 70 70 75 105 150 180 270 300
Condenser Fan (ø x B x ea) 400x4x1 450x4x1 550x4x1 650x4x1 550x4x2 600x4x2 700x4x2 700x4x3
Motor(kW x p x ea) 0.1x6x1 0.2x6x1 0.4x6x1 0.75x6x1 0.4x6x2 0.4x6x2 0.75x6x2 0.75x6x3
Freezing
Protection		 Type STS- Heater
Out put (kW) 1.0 2.0 3.0
Tank Capacity (ℓ) 30 40 80 120 130 150 260 540
Pipe Conn. Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
Out-Dimension


 W 605 705 750 750 835 965 940
L 950 1,300 1,400 1,510 1,820 2,020 2,655
H 1,370 1,520 1,515 1,780 1,830 2,115 2,060
Gross Weight (Kg) 200 280 330 400 460 600 800 930
Power Consupumption (kW) 2.2 3.0 5.0 7.0 10.0 14.0 18.0 27.0
Cable Size 220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 6.0 6.0 10.0 16.0 25.0
