INTRODUCTION

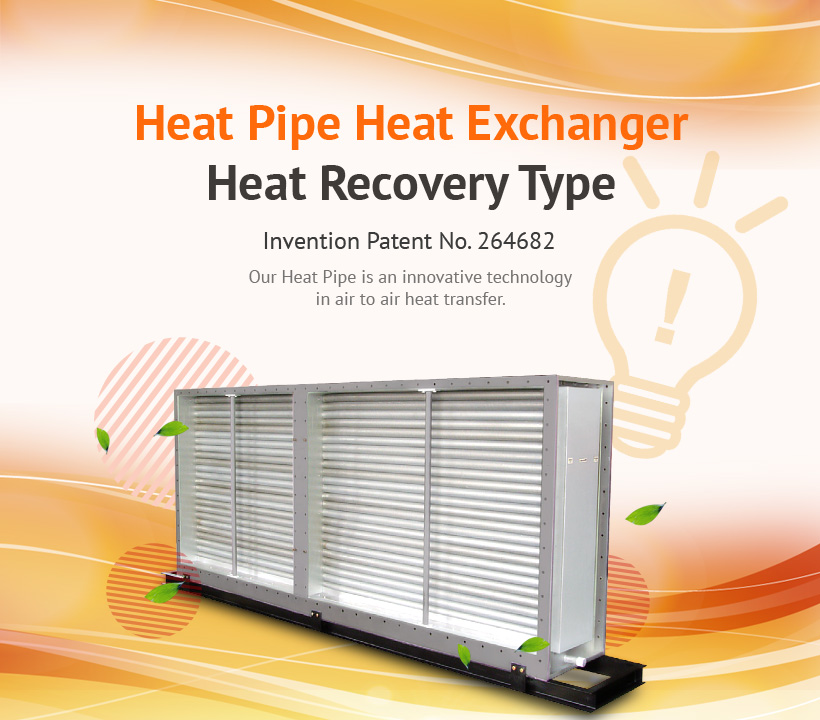

Our innovative Heat Pipe Heat Exchanger is an air to air
heat exchanger combined with new manufacturing techniques.
It is a cost effective energy recovery solution through capturing
waste energy from industrial processes and commercial
air conditioning systems.
Our Heat Pipe Heat Exchanger is a high performance
heat transfer system:
- recovers heat by transfering heat from high-temperature
air stream to low temperature air stream
- delivers heat using latent heat of working fluid with the
exceeding speed of sound in an axial direction
- delivers heat in a short time compared to metal
Our Heat Pipe Heat Exchanger consists of ;
- a capillary wick which is formed inside the tube wall
- a bundle of individual heat pipe tubes with cold thread
rolling process and plate fins.
Various kinds of fluid is selected for different temperature range.
Materials used for heat exchanger are high corrosion-resistant
depending on the components of the exhaust gas.
heat exchanger combined with new manufacturing techniques.
It is a cost effective energy recovery solution through capturing
waste energy from industrial processes and commercial
air conditioning systems.
Our Heat Pipe Heat Exchanger is a high performance
heat transfer system:
- recovers heat by transfering heat from high-temperature
air stream to low temperature air stream
- delivers heat using latent heat of working fluid with the
exceeding speed of sound in an axial direction
- delivers heat in a short time compared to metal
Our Heat Pipe Heat Exchanger consists of ;
- a capillary wick which is formed inside the tube wall
- a bundle of individual heat pipe tubes with cold thread
rolling process and plate fins.
Various kinds of fluid is selected for different temperature range.
Materials used for heat exchanger are high corrosion-resistant
depending on the components of the exhaust gas.
OPERATING PRINCIPLE

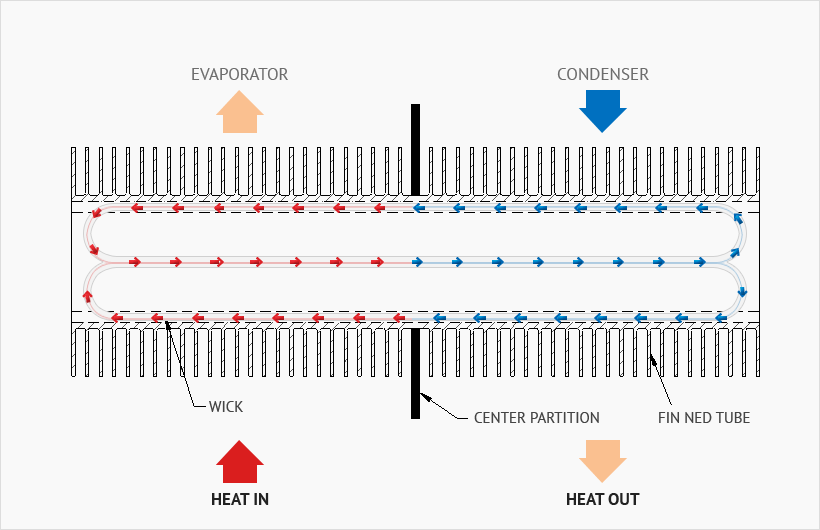

An individual heat pipe is made up of three basic components ; a sealed pipe (tube), a capillary wick
structure and working fluid.
In order to maximize the heat transfer, a capillary wick structure is formed inside the pipe and a fin is formed outside the pipe.
If the hot air(exhaust air/gas) passes through the evaporator section (high temperature side) of the heat pipe, the working fluid in the evaporator section takes away the heat of passed air and this evaporated working fluid is delivered to the condenser section(low temperature side) by pressure difference.
The hot air that has been passed through the evaporator section is cooled down.
structure and working fluid.
In order to maximize the heat transfer, a capillary wick structure is formed inside the pipe and a fin is formed outside the pipe.
If the hot air(exhaust air/gas) passes through the evaporator section (high temperature side) of the heat pipe, the working fluid in the evaporator section takes away the heat of passed air and this evaporated working fluid is delivered to the condenser section(low temperature side) by pressure difference.
The hot air that has been passed through the evaporator section is cooled down.
The vapor of working fluid transferred to condenser section releases heat to cool air that has passed the condenser section.
The cold air passed through condenser section is heated by condensation latent heat of working fluid.
The vapor of working fluid transferred to condenser section releases heat to cool air that has passed the condenser section.
The cold air passed through condenser section is heated by condensation latent heat of working fluid.
The middle partition located in the center of heat pipe heat exchanger separates two counter currents.
The warm current at one end of the heat pipe evaporates the working fluid inside the heat pipe. Vapor from the working fluid penetrates the pipe and releases heat to cold current. Then the vapor is condensed and liquidated.
The condensed / liquidated working fluid returns to the warm end through the wick and the cycle is completed.
The heat pipe system operated by the difference of temperature between the warm and cold current. Basic heat pipe system does not have moving parts nor external electrical power and does not require mechanical maintenance.
The cold air passed through condenser section is heated by condensation latent heat of working fluid.
The vapor of working fluid transferred to condenser section releases heat to cool air that has passed the condenser section.
The cold air passed through condenser section is heated by condensation latent heat of working fluid.
The middle partition located in the center of heat pipe heat exchanger separates two counter currents.
The warm current at one end of the heat pipe evaporates the working fluid inside the heat pipe. Vapor from the working fluid penetrates the pipe and releases heat to cold current. Then the vapor is condensed and liquidated.
The condensed / liquidated working fluid returns to the warm end through the wick and the cycle is completed.
The heat pipe system operated by the difference of temperature between the warm and cold current. Basic heat pipe system does not have moving parts nor external electrical power and does not require mechanical maintenance.
CHARACTER
- Heat pipe body
- Our's heat pipe body is manufactured with external fin and internal groove wick.
- Integrated fin structure
- Integral fin structure does not have external fouling resistance and tube-to-fin
bond resistance.
Therefore, poor performance resulting from excessive operating time is reduce.
- Individual Operation
- As each heat pipe is produced and assembled individually through rigorous testing,
each heat pipe operates individually.
The operation of individual heat pipe is not affected by other damaged heat pipe, if any. Therefore, stable operation of heat pipe is guaranteed at all times.
- Simple maintenance
- Our's heat pipe heat exchanger is guaranteed its long life as it is completely sealed, has no moving parts and has strong heat and corrosion resistance. As there is no moving parts, Our's heat pipe heat exchanger does not require any special maintenance other than the exterior
of the heat exchanger. cleaning
- Prevent cross-contamination
- The partition between the evaporator and condenser section is specifically produced to completely separate fresh air supply side from the contaminated exhaust side. Our heat pipe heat exchanger is optimized and ideal for use in hospitals, laboratories, test room, pharmaceutical and bio-industries, clean room processes and multi-use facilities to improve indoor air quality.

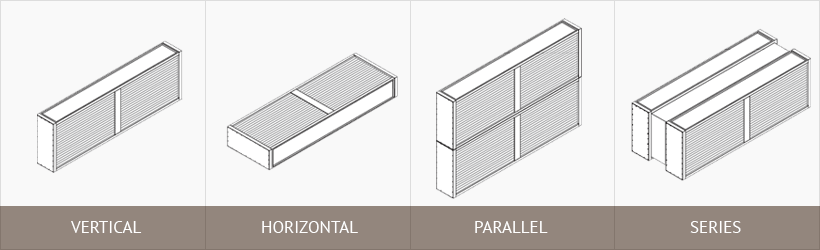

INSTALLATION METHODS
Our's heat pipe heat exchanger is flexible to apply and adapt to customers' needs.
We design and manufacture our products in various size and specification to fit the needs and conditions of sites and services.
Our product has simple structure and is light weight compared to its capacity.
We design and manufacture our products in various size and specification to fit the needs and conditions of sites and services.
Our product has simple structure and is light weight compared to its capacity.
