CTHC

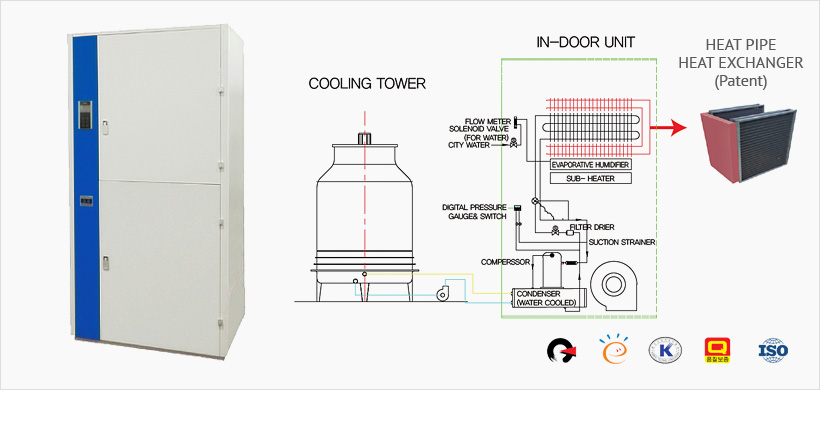

Water Cooled Energy Save Type Constant Temp. & Humidity Control Unit / Down-Flow Type
Specification
MODEL KC60
030		 KC60
050		 KC60
060		 KC60
075		 KC60
100		 KC60
150		 KC60
200		 KC60
300
Power Supply 220 / 380V~440V / 3Ph / 60Hz
Refrigerant R-22 / R-410A / R-134a
Cooling cap kcal/hr 10.492 17.372 20.984 23.478 34.744 46.956 74.132 90.644
kw 12.20 20.20 24.40 27.30 40.40 54.60 86.20 105.40
Heating cap kcal/hr 2,580 2,580 5,160 5,160 8,600 8,600 10,320 10,320
kw 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
Comp. Type Hermetic - Scroll Type
Out put (kw) 2.2 3.75 2.2 x 2 5.5 3.75 x 2 5.5 x 2 7.5 x 2 11.25 x 2
Blower Type Sirocco Fan / Direct - Drive
Motor
(kw x p x ea)		 0.4 x 8 x 1 0.5 x 8 x 1 0.6 x 8 x 1 0.8 x 8 x 1 0.8 x 8 x 2 0.8 x 8 x 2 1.1 x 8 x 2 1.3 x 8 x 2
S.P (mmAq) 17~22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22
Air Volume (CMM) 38 45 60 85 92 150 185 215
Condenser Capacity(RT) 3 5 6(3+3) 7.5 10(5+5) 15(7.5+7.5) 20(10+10) 30(15+15)
Inlet/Outlet(A) 25 32 32 40 40 50 50 65
Heater Type STS-Aero Finned Tube Type
Out put (kw) 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
Humidifier Type Evaporative Type
Capacity (L/hr) 4.00 5.00 8.00 8.00 10.00 15.00 20.00 25.00
Pipe Conn. Suction (inch) 5/8" 3/4" 5/8"x2 7/8" 3/4"x2 7/8"x2 1-1/8"x2 1-3/8"x2
Discharge (inch) 3/8" 1/2" 3/8"x2 1/2" 1/2"x2 1/2"x2 5/8"x2 7/8"x2
Make-Up(inch) 1/4"
Drain (A) 20 25
Out-Dimension W 1,100 1,100 1,300 1,300 1,510 1,850 2,000 2,500
D 1,100 1,100 1,150 1,150 1,150 1,150 1,250 1,300
H 1,850 1,850 1,850 1,850 1,850 1,900 1,900 2,150
Power Consupumption (kw) 5.60 7.25 11.00 12,30 18.50 22.60 29.20 37.10
Cable Size 220V / wire (㎟) 6.0 10.0 16.0 16.0 35.0 35.0 50.0 70.0
380V / wire (㎟) 4.0 4.0 6.0 6.0 16.0 25.0 25.0 35.0
