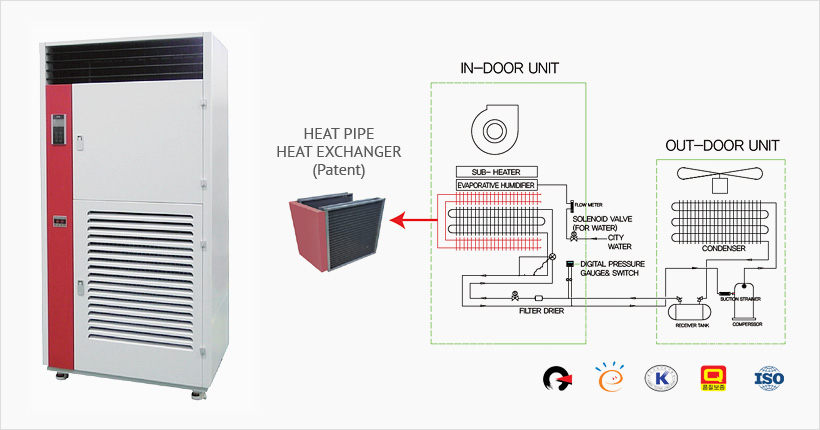

Air Cooled Energy Save Type Constant Temp. & Humidity Control Unit / Up-Flow Type
Specification
| MODEL | KC55 030 |
KC55 050 |
KC55 060 |
KC55 075 |
KC55 100 |
KC55 150 |
KC55 200 |
KC55 300 |
|
|---|---|---|---|---|---|---|---|---|---|
| Power Supply | 220 / 380V~440V / 3Ph / 60Hz | ||||||||
| Refrigerant | R-22 / R-410A / R-134a | ||||||||
| Cooling cap | kcal/hr | 8,729 | 14,491 | 17,458 | 19,952 | 28,982 | 39,904 | 62,780 | 93,224 |
| kw | 10.15 | 16.85 | 20.30 | 23.20 | 33.70 | 46.40 | 73.00 | 108.40 | |
| Heating cap | kcal/hr | 2,580 | 2,580 | 5,160 | 5,160 | 8,600 | 8,600 | 10,320 | 10,320 |
| kw | 3.00 | 3.00 | 6.00 | 6.00 | 10.00 | 10.00 | 12.00 | 12.00 | |
| Comp. | Type | Hermetic - Scroll Type | |||||||
| Out put (kw) | 2.2 | 3.75 | 2.2 x 2 | 6 | 3.75 x 2 | 5.5 x 2 | 7.5 x 2 | 11.25 x 2 | |
| Blower | Type | Sirocco Fan / Direct - Drive | |||||||
| Motor (kw x p x ea) |
0.4 x 8 x 1 | 0.5 x 8 x 1 | 0.6 x 8 x 1 | 0.8 x 8 x 1 | 0.8 x 8 x 2 | 0.8 x 8 x 2 | 1.1 x 8 x 2 | 1.3 x 8 x 2 | |
| S.P (mmAq) | 17~22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | |
| Air Volume (CMM) | 38 | 45 | 60 | 85 | 92 | 150 | 185 | 215 | |
| Condenser | Fan (ø x B x ea) | 350x4x2 | 400x4x2 | (350x4x2)x2 | 500x4x2 | (400x4x2)x2 | (500x4x2)x2 | (550x4x2)x2 | (600x4x2)x2 |
| Motor(w x p x ea) | 100x6x2 | 160x6x2 | (100x6x2)x2 | 280x6x2 | (160x6x2)x2 | (280x6x2)x2 | (280x6x2)x2 | (400x6x2)x2 | |
| Air Volume (CMM) | 80 | 100 | 80x2 | 190 | 100x2 | 190x2 | 210x2 | 300x2 | |
| Size (W x D x H) | 965x574 x1,037 |
1,186x574 x1,183 |
965x574 x1,037-2 |
192x744 x1,451 |
1,186x574 x1,183-2 |
1,392x744 x1,451-2 |
1,738x849 x1,452-2 |
1,650x900 x1,950-2 |
|
| Heater | Type | STS-Aero Finned Tube Type | |||||||
| Out put (kw) | 3.00 | 3.00 | 6.00 | 6.00 | 10.00 | 10.00 | 12.00 | 12.00 | |
| Humidifier | Type | Evaporative Type | |||||||
| Capacity (L/hr) | 4.00 | 5.00 | 8.00 | 8.00 | 10.00 | 15.00 | 20.00 | 25.00 | |
| Pipe Conn. | Suction (inch) | 5/8" | 3/4" | 5/8"x2 | 7/8" | 3/4"x2 | 7/8"x2 | 1-1/8"x2 | 1-3/8"x2 |
| Discharge (inch) | 3/8" | 1/2" | 3/8"x2 | 1/2" | 1/2"x2 | 1/2"x2 | 5/8"x2 | 7/8"x2 | |
| Make-Up(inch) | 1/4" | ||||||||
| Drain (A) | 20 | 25 | |||||||
| Out-Dimension | W | 1,100 | 1,100 | 1,300 | 1,300 | 1,510 | 1,850 | 2,000 | 2,500 |
| D | 1,100 | 1,100 | 1,150 | 1,150 | 1,150 | 1,150 | 1,250 | 1,300 | |
| H | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,300 | |
| Power Consupumption (kw) | 5.80 | 7.57 | 11.20 | 12.86 | 19.14 | 23.72 | 29.76 | 37.90 | |
| Cable Size | 220V / wire (㎟) | 6.0 | 10.0 | 16.0 | 25.0 | 35.0 | 35.0 | 50.0 | 70.0 |
| 380V / wire (㎟) | 4.0 | 4.0 | 6.0 | 16.0 | 16.0 | 25.0 | 25.0 | 35.0 | |
