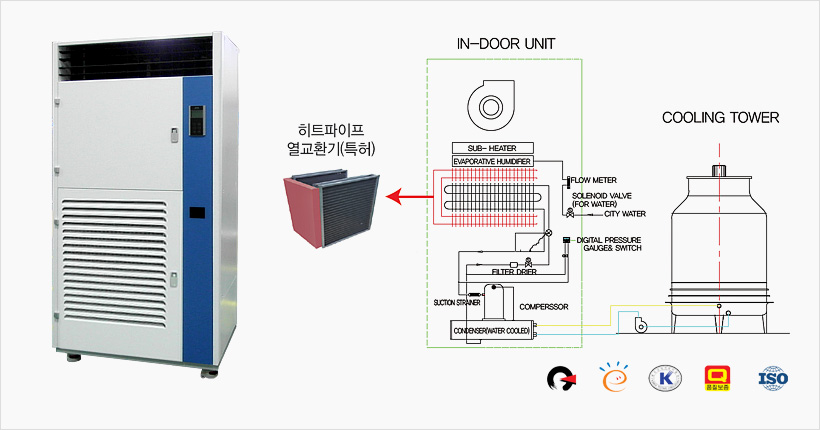

수냉식, 상향식
표준사양
| MODEL | KC65 030 |
KC65 050 |
KC65 060 |
KC65 075 |
KC65 100 |
KC65 150 |
KC65 200 |
KC65 300 |
|
|---|---|---|---|---|---|---|---|---|---|
| 전 원 (Power Supply) | 220 / 380V~440V / 3Ph / 60Hz | ||||||||
| 사용냉매 (Refrigerant) | R-22 / R-410A / R-134a | ||||||||
| 냉방능력 (cooling cap) |
kcal/hr | 10.492 | 17.372 | 20.984 | 23.478 | 34.744 | 46.956 | 74.132 | 90.644 |
| kw | 12.20 | 20.20 | 24.40 | 27.30 | 40.40 | 54.60 | 86.20 | 105.40 | |
| 난방능력 (heating cap) |
kcal/hr | 2,580 | 2,580 | 5,160 | 5,160 | 8,600 | 8,600 | 10,320 | 10,320 |
| kw | 3.00 | 3.00 | 6.00 | 6.00 | 10.00 | 10.00 | 12.00 | 12.00 | |
| 압축기 (Comp.) |
Type | Hermetic - Scroll Type | |||||||
| Out put (kw) | 2.2 | 3.75 | 2.2 x 2 | 5.5 | 3.75 x 2 | 5.5 x 2 | 7.5 x 2 | 11.25 x 2 | |
| 송풍기 (Blower) |
Type | Sirocco Fan / Direct - Drive | |||||||
| Motor (kw x p x ea) |
0.4 x 8 x 1 | 0.5 x 8 x 1 | 0.6 x 8 x 1 | 0.8 x 8 x 1 | 0.8 x 8 x 2 | 0.8 x 8 x 2 | 1.1 x 8 x 2 | 1.3 x 8 x 2 | |
| S.P (mmAq) | 17~22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | 17∼22 | |
| Air Volume (CMM) | 38 | 45 | 60 | 85 | 92 | 150 | 185 | 215 | |
| 응축기 (Condenser) |
Capacity(RT) | 3 | 5 | 6(3+3) | 7.5 | 10(5+5) | 15(7.5+7.5) | 20(10+10) | 30(15+15) |
| Inlet/Outlet(A) | 25 | 32 | 32 | 40 | 40 | 50 | 50 | 65 | |
| 보조히터 (Heater) |
Type | STS-Aero Finned Tube Type | |||||||
| Out put (kw) | 3.00 | 3.00 | 6.00 | 6.00 | 10.00 | 10.00 | 12.00 | 12.00 | |
| 가습기 (Humidifier) |
Type | 기화식(Evaporative Type) | |||||||
| Capacity (L/hr) | 4.00 | 5.00 | 8.00 | 8.00 | 10.00 | 15.00 | 20.00 | 25.00 | |
| 배 관 (Pipe Conn.) |
Suction (inch) | 5/8" | 3/4" | 5/8"x2 | 7/8" | 3/4"x2 | 7/8"x2 | 1-1/8"x2 | 1-3/8"x2 |
| Discharge (inch) | 3/8" | 1/2" | 3/8"x2 | 1/2" | 1/2"x2 | 1/2"x2 | 5/8"x2 | 7/8"x2 | |
| Make-Up(inch) | 1/4" | ||||||||
| Drain (A) | 20 | 25 | |||||||
| 외형치수 (Out-Dimension) |
W | 1,100 | 1,100 | 1,300 | 1,300 | 1,510 | 1,850 | 2,000 | 2,500 |
| D | 1,100 | 1,100 | 1,150 | 1,150 | 1,150 | 1,150 | 1,250 | 1,300 | |
| H | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,250 | 2,300 | |
| Power Consupumption (kw) | 5.60 | 7.25 | 11.00 | 12,30 | 18.50 | 22.60 | 29.20 | 37.10 | |
| 전선용량 (Cable Size) |
220V / wire (㎟) | 6.0 | 10.0 | 16.0 | 16.0 | 35.0 | 35.0 | 50.0 | 70.0 |
| 380V / wire (㎟) | 4.0 | 4.0 | 6.0 | 16.0 | 16.0 | 25.0 | 25.0 | 35.0 | |
