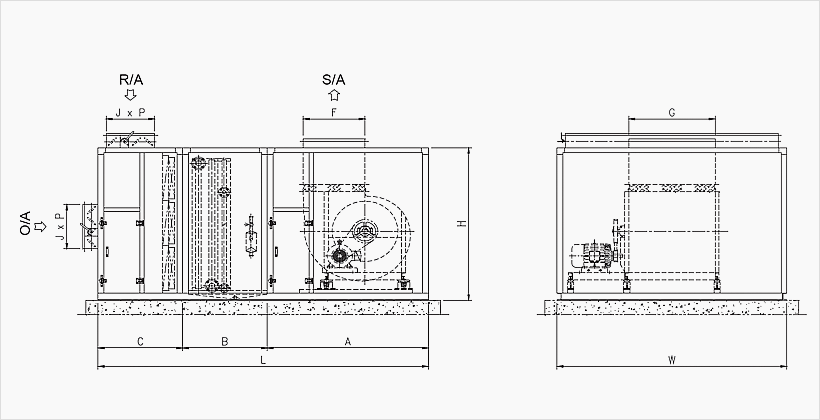

TOTAL | PART SECTION | FAN Outlet | DAMPER | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
L | W | H | A | B | C | F | G | J | K | P | |
YAH 0060 HN | 2650 | 1200 | 1050 | 1100 | 750 | 800 | 360 | 490 | 300 | 300 | 750 |
YAH 0080 HN | 2800 | 1200 | 1150 | 1250 | 750 | 800 | 400 | 540 | 300 | 300 | 750 |
YAH 0100 HN | 2800 | 1400 | 1200 | 1250 | 750 | 800 | 400 | 540 | 300 | 300 | 950 |
YAH 0120 HN | 2850 | 1400 | 1200 | 1300 | 750 | 800 | 440 | 600 | 300 | 300 | 1250 |
YAH 0150 HN | 2950 | 1550 | 1300 | 1400 | 750 | 800 | 490 | 660 | 300 | 300 | 1400 |
YAH 0170 HN | 3050 | 1700 | 1300 | 1500 | 750 | 800 | 525 | 730 | 300 | 300 | 1550 |
YAH 0200 HN | 3050 | 1700 | 1450 | 1500 | 750 | 800 | 525 | 730 | 300 | 300 | 1550 |
YAH 0230 HN | 3050 | 1900 | 1450 | 1500 | 750 | 800 | 525 | 730 | 400 | 300 | 1750 |
YAH 0300 HN | 3200 | 2100 | 1600 | 1650 | 750 | 800 | 650 | 890 | 450 | 450 | 1950 |
YAH 0370 HN | 3400 | 2150 | 1850 | 1750 | 750 | 900 | 650 | 890 | 600 | 600 | 2000 |
YAH 0450 HN | 3500 | 2500 | 1850 | 1850 | 750 | 900 | 715 | 980 | 600 | 600 | 2350 |
YAH 0500 HN | 3600 | 2750 | 1850 | 1950 | 750 | 900 | 800 | 1080 | 600 | 600 | 2600 |
YAH 0600 HN | 3600 | 2800 | 2100 | 1950 | 750 | 900 | 875 | 1200 | 600 | 600 | 2650 |
YAH 0650 HN | 3600 | 3000 | 2100 | 1950 | 750 | 900 | 875 | 1200 | 600 | 600 | 2850 |
YAH 0700 HN | 3950 | 3000 | 2250 | 2000 | 900 | 1050 | 975 | 1320 | 750 | 750 | 2850 |
YAH 0750 HN | 3950 | 3150 | 2250 | 2000 | 900 | 1050 | 975 | 1320 | 750 | 750 | 3000 |
YAH 0800 HN | 4100 | 3350 | 2250 | 2150 | 900 | 1050 | 1065 | 1460 | 750 | 750 | 3200 |
YAH 0900 HN | 4100 | 3400 | 2450 | 2150 | 900 | 1050 | 1065 | 1460 | 750 | 750 | 3250 |
YAH 1000 HN | 4100 | 3550 | 2600 | 2150 | 900 | 1050 | 1065 | 1460 | 750 | 750 | 3400 |
YAH 1100 HN | 4100 | 3900 | 2600 | 2150 | 900 | 1050 | 1065 | 1460 | 750 | 750 | 3750 |
YAH 1200 HN | 4550 | 4000 | 2800 | 2300 | 1050 | 1200 | 1180 | 1610 | 900 | 900 | 3850 |
YAH 1300 HN | 4550 | 4200 | 2800 | 2300 | 1050 | 1200 | 1180 | 1610 | 900 | 900 | 1850x2 |
YAH 1400 HN | 4550 | 4300 | 2950 | 2300 | 1050 | 1200 | 1180 | 1610 | 1050 | 1050 | 1900x2 |
YAH 1500 HN | 4850 | 4500 | 2950 | 2500 | 1050 | 1300 | 1300 | 1780 | 1050 | 1050 | 2000x2 |

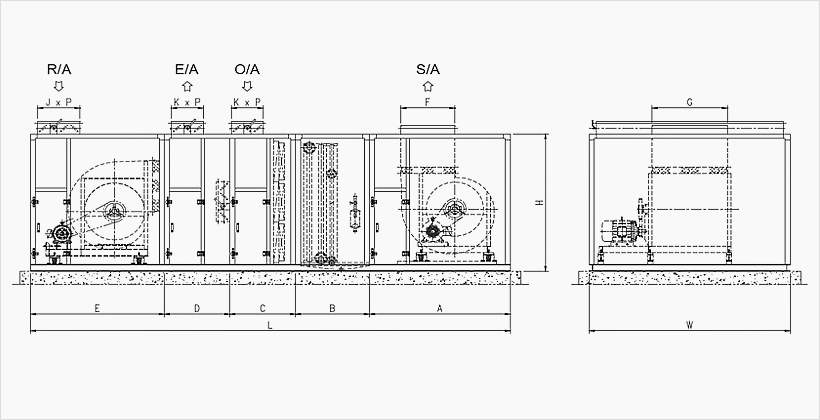

TOTAL | PART SECTION | FAN Outlet | DAMPER | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L | W | H | A | B | C | D | E | F | G | J | K | P | |
YAH 0060 HR | 4500 | 1200 | 1050 | 1100 | 750 | 800 | 750 | 1100 | 360 | 490 | 300 | 300 | 750 |
YAH 0080 HR | 4750 | 1200 | 1150 | 1250 | 750 | 800 | 750 | 1200 | 400 | 540 | 300 | 300 | 750 |
YAH 0100 HR | 4850 | 1400 | 1200 | 1250 | 750 | 800 | 750 | 1300 | 400 | 540 | 300 | 300 | 950 |
YAH 0120 HR | 4900 | 1400 | 1200 | 1300 | 750 | 800 | 750 | 1300 | 440 | 600 | 300 | 300 | 1250 |
YAH 0150 HR | 5000 | 1550 | 1300 | 1400 | 750 | 800 | 750 | 1300 | 490 | 660 | 300 | 300 | 1400 |
YAH 0170 HR | 5200 | 1700 | 1300 | 1500 | 750 | 800 | 750 | 1400 | 525 | 730 | 300 | 300 | 1550 |
YAH 0200 HR | 5200 | 1700 | 1450 | 1500 | 750 | 800 | 750 | 1400 | 525 | 730 | 300 | 300 | 1550 |
YAH 0230 HR | 5300 | 1900 | 1450 | 1500 | 750 | 800 | 750 | 1500 | 525 | 730 | 400 | 300 | 1750 |
YAH 0300 HR | 5450 | 2100 | 1600 | 1650 | 750 | 800 | 750 | 1500 | 650 | 890 | 450 | 300 | 1950 |
YAH 0370 HR | 5750 | 2150 | 1850 | 1750 | 750 | 900 | 750 | 1700 | 650 | 890 | 600 | 450 | 2000 |
YAH 0450 HR | 5850 | 2500 | 1850 | 1850 | 750 | 900 | 750 | 1700 | 715 | 980 | 600 | 450 | 2350 |
YAH 0500 HR | 5950 | 2750 | 1850 | 1950 | 750 | 900 | 750 | 1700 | 800 | 1080 | 600 | 450 | 2600 |
YAH 0600 HR | 6050 | 2800 | 2100 | 1950 | 750 | 900 | 750 | 1800 | 875 | 1200 | 600 | 450 | 2650 |
YAH 0650 HR | 6150 | 3000 | 2100 | 1950 | 750 | 900 | 750 | 1900 | 875 | 1200 | 600 | 450 | 2850 |
YAH 0700 HR | 6400 | 3000 | 2250 | 2000 | 900 | 1050 | 770 | 1900 | 975 | 1320 | 750 | 600 | 2850 |
YAH 0750 HR | 6400 | 3150 | 2250 | 2000 | 900 | 1050 | 770 | 1900 | 975 | 1320 | 750 | 600 | 3000 |
YAH 0800 HR | 6850 | 3350 | 2250 | 2150 | 900 | 1050 | 910 | 2000 | 1065 | 1460 | 750 | 600 | 3200 |
YAH 0900 HR | 6950 | 3400 | 2450 | 2150 | 900 | 1050 | 910 | 2100 | 1065 | 1460 | 750 | 600 | 3250 |
YAH 1000 HR | 7100 | 3550 | 2600 | 2150 | 900 | 1050 | 910 | 2250 | 1065 | 1460 | 750 | 600 | 3400 |
YAH 1100 HR | 7100 | 3900 | 2600 | 2150 | 900 | 1050 | 910 | 2250 | 1065 | 1460 | 750 | 600 | 3750 |
YAH 1200 HR | 7750 | 4000 | 2800 | 2300 | 1050 | 1200 | 1100 | 2250 | 1180 | 1610 | 900 | 750 | 3850 |
YAH 1300 HR | 7900 | 4200 | 2800 | 2300 | 1050 | 1200 | 1100 | 2400 | 1180 | 1610 | 900 | 750 | 1850x2 |
YAH 1400 HR | 7900 | 4300 | 2950 | 2300 | 1050 | 1200 | 1100 | 2400 | 1180 | 1610 | 1050 | 900 | 1900x2 |
YAH 1500 HR | 8450 | 4500 | 2950 | 2500 | 1050 | 1300 | 1300 | 2400 | 1300 | 1780 | 1050 | 900 | 2000x2 |

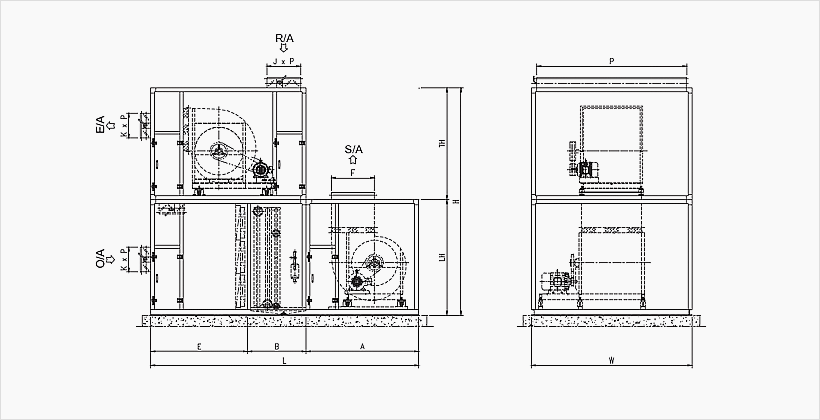

TOTAL | PART SECTION | FAN Outlet | DAMPER | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
L | W | H | LH | TH | A | B | F | G | J | P | |
YAH 0060 CN | 1900 | 1200 | 2150 | 1050 | 1100 | 1100 | 800 | 360 | 490 | 300 | 750 |
YAH 0080 CN | 2050 | 1200 | 2300 | 1150 | 1150 | 1250 | 800 | 400 | 540 | 300 | 750 |
YAH 0100 CN | 2050 | 1400 | 2350 | 1200 | 1150 | 1250 | 800 | 400 | 540 | 300 | 950 |
YAH 0120 CN | 2100 | 1400 | 2400 | 1200 | 1200 | 1300 | 800 | 440 | 600 | 300 | 1250 |
YAH 0150 CN | 2200 | 1550 | 2600 | 1300 | 1300 | 1400 | 800 | 490 | 660 | 300 | 1400 |
YAH 0170 CN | 2300 | 1700 | 2750 | 1300 | 1450 | 1500 | 800 | 525 | 730 | 300 | 1550 |
YAH 0200 CN | 2300 | 1700 | 2900 | 1450 | 1450 | 1500 | 800 | 525 | 730 | 300 | 1550 |
YAH 0230 CN | 2300 | 1900 | 2900 | 1450 | 1450 | 1500 | 800 | 525 | 730 | 400 | 1750 |
YAH 0300 CN | 2450 | 2100 | 3100 | 1600 | 1500 | 1650 | 800 | 650 | 890 | 450 | 1950 |
YAH 0370 CN | 2650 | 2150 | 3350 | 1850 | 1500 | 1750 | 900 | 650 | 890 | 600 | 2000 |
YAH 0450 CN | 2750 | 2500 | 3450 | 1850 | 1600 | 1850 | 900 | 715 | 980 | 600 | 2350 |
YAH 0500 CN | 2850 | 2750 | 3600 | 1850 | 1750 | 1950 | 900 | 800 | 1080 | 600 | 2600 |
YAH 0600 CN | 2550 | 2800 | 3600 | 2100 | 1500 | 1650 | 900 | 650 | 890 | 600 | 2650 |
YAH 0650 CN | 2550 | 3000 | 3600 | 2100 | 1500 | 1650 | 900 | 650 | 890 | 600 | 2850 |
YAH 0700 CN | 2700 | 3000 | 3750 | 2250 | 1500 | 1650 | 1050 | 650 | 890 | 750 | 2850 |
YAH 0750 CN | 2700 | 3150 | 3750 | 2250 | 1500 | 1650 | 1050 | 650 | 890 | 750 | 3000 |
YAH 0800 CN | 2700 | 3350 | 3750 | 2250 | 1500 | 1650 | 1050 | 650 | 890 | 750 | 3200 |
YAH 0900 CN | 2900 | 3400 | 4050 | 2450 | 1600 | 1850 | 1050 | 715 | 980 | 750 | 3250 |
YAH 1000 CN | 2900 | 3550 | 4200 | 2600 | 1600 | 1850 | 1050 | 715 | 980 | 750 | 3400 |
YAH 1100 CN | 2900 | 3900 | 4200 | 2600 | 1600 | 1850 | 1050 | 715 | 980 | 750 | 3750 |
YAH 1200 CN | 3150 | 4000 | 4550 | 2800 | 1750 | 1950 | 1200 | 800 | 1080 | 900 | 3850 |
YAH 1300 CN | 3150 | 4200 | 4550 | 2800 | 1750 | 1950 | 1200 | 800 | 1080 | 900 | 1850x2 |
YAH 1400 CN | 3400 | 4300 | 4800 | 2950 | 1850 | 2200 | 1200 | 1875 | 1200 | 1050 | 1900x2 |
YAH 1500 CN | 3400 | 4500 | 4800 | 2950 | 1850 | 2200 | 1200 | 1875 | 1200 | 1050 | 2000x2 |

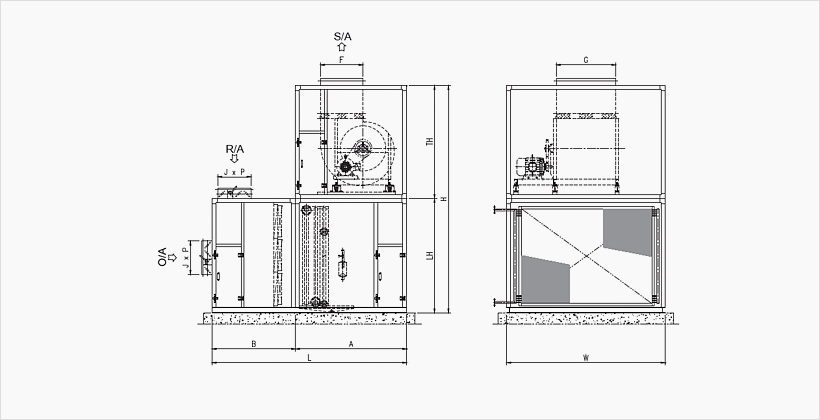

TOTAL | PART SECTION | FAN Outlet | DAMPER | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L | W | H | LH | TH | A | B | C | F | G | J | K | P | |
YAH 0060 CR | 2900 | 1200 | 2000 | 1050 | 950 | 1100 | 750 | 1050 | 360 | 490 | 300 | 300 | 750 |
YAH 0080 CR | 3050 | 1200 | 2100 | 1150 | 950 | 1250 | 750 | 1050 | 400 | 540 | 300 | 300 | 750 |
YAH 0100 CR | 3100 | 1400 | 2200 | 1200 | 1000 | 1250 | 750 | 1100 | 400 | 540 | 300 | 300 | 950 |
YAH 0120 CR | 3200 | 1400 | 2200 | 1200 | 1000 | 1300 | 750 | 1150 | 440 | 600 | 300 | 300 | 1250 |
YAH 0150 CR | 3450 | 1550 | 2500 | 1300 | 1200 | 1400 | 750 | 1300 | 490 | 660 | 300 | 300 | 1400 |
YAH 0170 CR | 3550 | 1700 | 2500 | 1300 | 1200 | 1500 | 750 | 1300 | 525 | 730 | 300 | 300 | 1550 |
YAH 0200 CR | 3550 | 1700 | 2650 | 1450 | 1200 | 1500 | 750 | 1300 | 525 | 730 | 300 | 300 | 1550 |
YAH 0230 CR | 3800 | 1900 | 2700 | 1450 | 1250 | 1500 | 750 | 1550 | 525 | 730 | 400 | 300 | 1750 |
YAH 0300 CR | 4000 | 2100 | 2950 | 1600 | 1350 | 1650 | 750 | 1600 | 650 | 890 | 450 | 300 | 1950 |
YAH 0370 CR | 4250 | 2150 | 3300 | 1850 | 1450 | 1750 | 750 | 1750 | 650 | 890 | 600 | 450 | 2000 |
YAH 0450 CR | 4450 | 2500 | 3450 | 1850 | 1600 | 1850 | 750 | 1850 | 715 | 980 | 600 | 450 | 2350 |
YAH 0500 CR | 4600 | 2750 | 3450 | 1850 | 1600 | 1950 | 750 | 1900 | 800 | 1080 | 600 | 450 | 2600 |
YAH 0600 CR | 4800 | 2800 | 3850 | 2100 | 1750 | 2000 | 750 | 2050 | 875 | 1200 | 600 | 450 | 2650 |
YAH 0650 CR | 4900 | 3000 | 3550 | 2100 | 1450 | 2000 | 750 | 2150 | 875 | 1200 | 600 | 450 | 2850 |
YAH 0700 CR | 5250 | 3000 | 3850 | 2250 | 1600 | 2200 | 900 | 2150 | 975 | 1320 | 750 | 600 | 2850 |
YAH 0750 CR | 5250 | 3150 | 3850 | 2250 | 1600 | 2200 | 900 | 2150 | 975 | 1320 | 750 | 600 | 3000 |
YAH 0800 CR | 5550 | 3350 | 3850 | 2250 | 1600 | 2350 | 900 | 2300 | 1065 | 1460 | 750 | 600 | 3200 |
YAH 0900 CR | 5600 | 3400 | 4200 | 2450 | 1750 | 2350 | 900 | 2350 | 1065 | 1460 | 750 | 600 | 3250 |
YAH 1000 CR | 5650 | 3550 | 4350 | 2600 | 1750 | 2350 | 900 | 2400 | 1065 | 1460 | 750 | 600 | 3400 |
YAH 1100 CR | 5650 | 3900 | 4550 | 2600 | 1950 | 2350 | 900 | 2400 | 1065 | 1460 | 750 | 600 | 3750 |
YAH 1200 CR | 5550 | 4000 | 4750 | 2800 | 1950 | 2500 | 1050 | 2000 | 1180 | 1610 | 900 | 750 | 3850 |
YAH 1300 CR | 5550 | 4200 | 4750 | 2800 | 1950 | 2500 | 1050 | 2000 | 1180 | 1610 | 900 | 750 | 1850x2 |
YAH 1400 CR | 5850 | 4300 | 5100 | 2950 | 2150 | 2500 | 1050 | 2300 | 1180 | 1610 | 1050 | 900 | 1900x2 |
YAH 1500 CR | 6050 | 4500 | 5100 | 2950 | 2150 | 2700 | 1050 | 2300 | 1300 | 1780 | 1050 | 900 | 2000x2 |

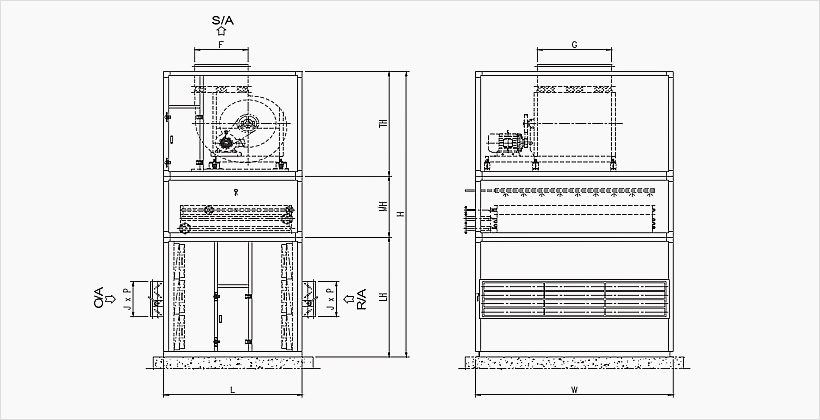

TOTAL | FAN Outlet | DAMPER | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
L | W | H | LH | MH | TH | F | G | J | P | |
YAH 0060 VN | 1100 | 1200 | 2850 | 1000 | 750 | 1100 | 360 | 490 | 300 | 750 |
YAH 0080 VN | 1250 | 1200 | 2900 | 1000 | 750 | 1150 | 400 | 540 | 300 | 750 |
YAH 0100 VN | 1250 | 1400 | 2900 | 1000 | 750 | 1150 | 400 | 540 | 300 | 950 |
YAH 0120 VN | 1300 | 1400 | 3250 | 1300 | 750 | 1200 | 440 | 600 | 300 | 1250 |
YAH 0150 VN | 1400 | 1550 | 3350 | 1300 | 750 | 1300 | 490 | 660 | 300 | 1400 |
YAH 0170 VN | 1500 | 1700 | 3500 | 1300 | 750 | 1450 | 525 | 730 | 300 | 1550 |
YAH 0200 VN | 1500 | 1700 | 3850 | 1650 | 750 | 1450 | 525 | 730 | 300 | 1550 |
YAH 0230 VN | 1500 | 1900 | 3850 | 1650 | 750 | 1450 | 525 | 730 | 400 | 1750 |
YAH 0300 VN | 1650 | 2100 | 3900 | 1650 | 750 | 1500 | 650 | 890 | 450 | 1950 |
YAH 0370 VN | 1650 | 2150 | 4200 | 1950 | 750 | 1500 | 650 | 890 | 600 | 2000 |
YAH 0450 VN | 1850 | 2500 | 1300 | 1950 | 750 | 1600 | 715 | 980 | 600 | 2350 |
YAH 0500 VN | 1950 | 2750 | 4450 | 1950 | 750 | 1750 | 800 | 1080 | 600 | 2600 |
YAH 0600 VN | 1650 | 2800 | 4500 | 2250 | 750 | 1500 | 650 | 890 | 600 | 2650 |
YAH 0650 VN | 1650 | 3000 | 4500 | 2250 | 750 | 1500 | 650 | 890 | 600 | 2850 |
YAH 0700 VN | 1650 | 3000 | 4500 | 2250 | 750 | 1500 | 650 | 890 | 750 | 2850 |
YAH 0750 VN | 1650 | 3150 | 4500 | 2250 | 750 | 1500 | 650 | 890 | 750 | 3000 |
